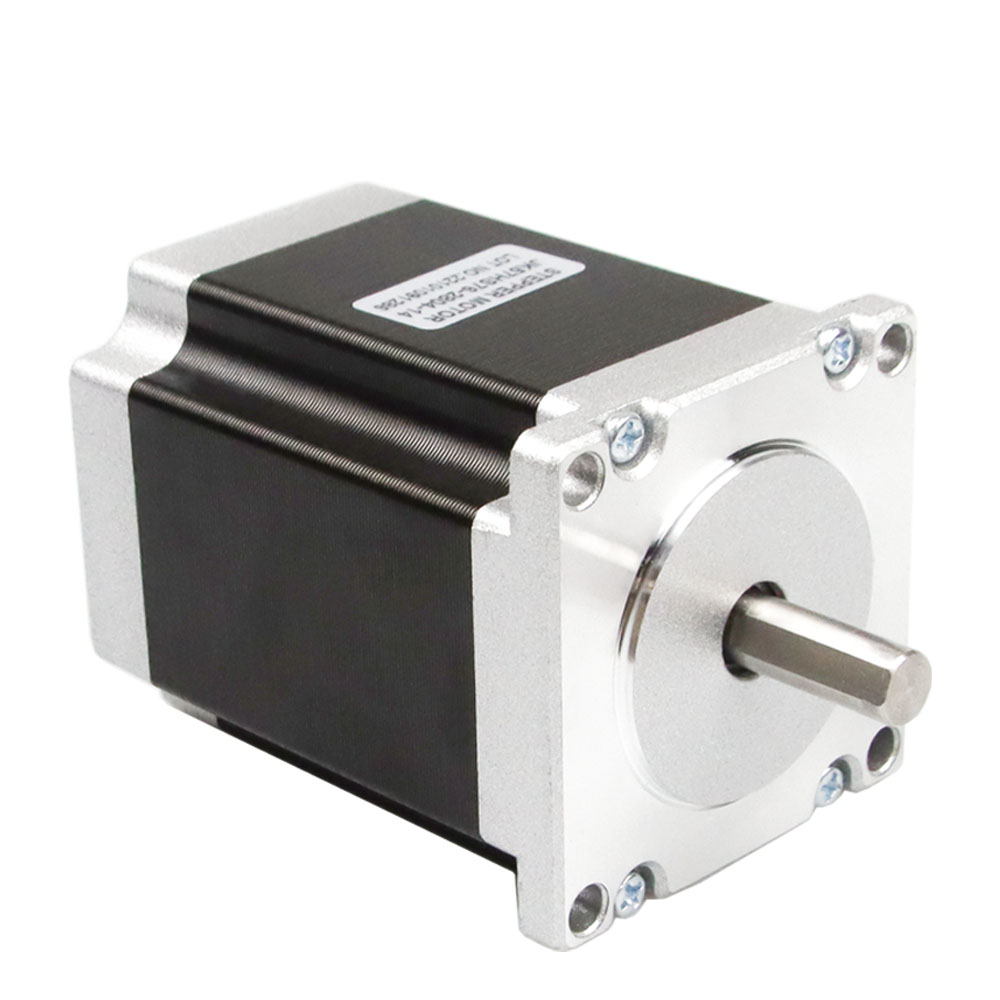

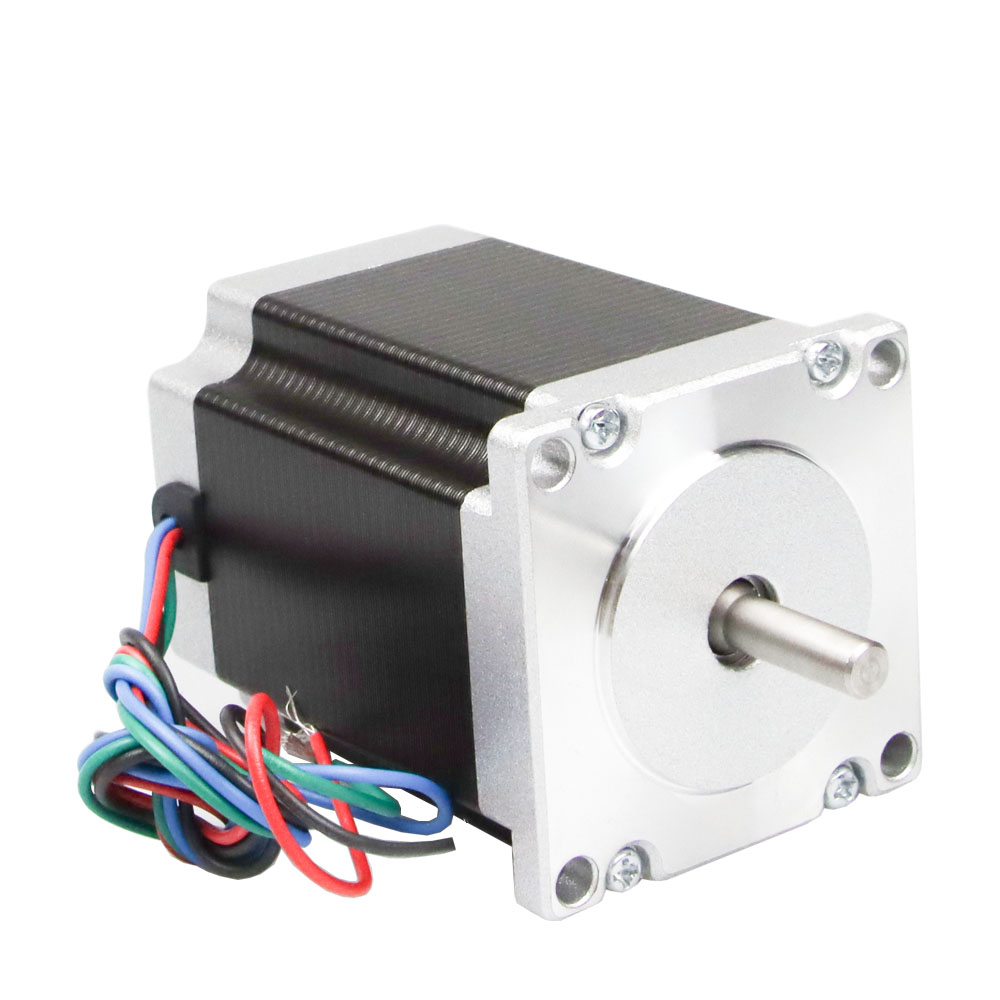

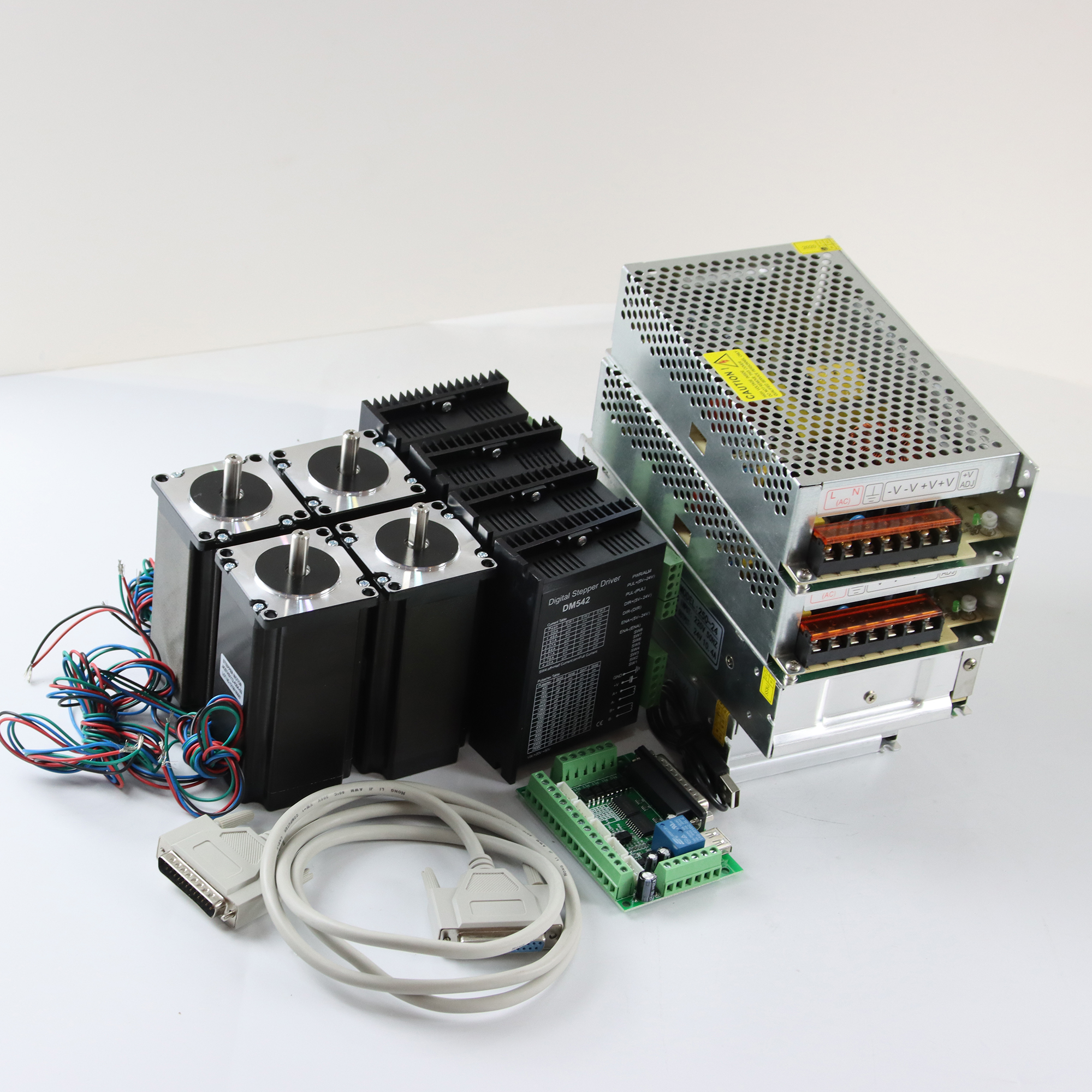

Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill

Ask Latest Price
Brand Name:Jkongmotor
Model Number:JK57HS112
Certification:CE, ROHS,ISO9001
Price:US$100~US$165
Payment Terms:T/T , paypal , Western Union, L/C
Supply Ability:100000pcs/month
Delivery Time:For samples , 7-15 days / For batch , 15-25days
MOQ:10pcs
Company Data
Verified Supplier
Contact Person Annie
Business Type: Manufacturer Distributor/Wholesaler Exporter Trading Company Seller
Officials: Building A2,Hutang Industrial zone,Lingdao Rd,Wujin District,Changzhou,China.Zip:213162
Quality: Quality Certifitation Available
Visit Website
Product Details Company Profile
Product Details
Quantity(pieces) 1 - 500 501 - 1000 >1000
Est. Time(days) 20 25 To be negotiated
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Item
Specifications
Step Angle
1.8°
Temperature Rise
80℃max
Ambient Temperature
-20℃~+50℃
Insulation Resistance
100 MΩ Min. ,500VDC
Dielectric Strength:
500VAC for 1minute
Shaft Radial Play
0.02Max. (450g-load)
Shaft Axial Play
0.08Max. (450g-load)
Max. radial force
75N (20mm from the flange)
Max. axial force
15N
Model No.
Motor Length
Current
/Phase
Resistance
/Phase
Inductance
/Phase
Holding Torque
# of Leads
Detent Torque
Rotor Inertia
Mass
(L)mm
A
Ω
mH
N.m
No.
g.cm
g.cm
Kg
JK57HS41-1006
41
1
7.1
8
0.48
6
250
150
0.47
JK57HS41-2008
41
2
1.4
1.4
0.39
8
250
150
0.47
JK57HS41-2804
41
2.8
0.7
1.4
0.55
4
250
150
0.47
JK57HS51-1006
51
1
6.6
8.2
0.72
6
300
230
0.59
JK57HS51-2008
51
2
1.8
2.7
0.9
8
300
230
0.59
JK57HS51-2804
51
2.8
0.83
2.2
1.01
4
300
230
0.59
JK57HS56-2006
56
2
1.8
2.5
0.9
6
350
280
0.68
JK57HS56-2108
56
2.1
1.8
2.5
1
8
350
280
0.68
JK57HS56-2804
56
2.8
0.9
2.5
1.2
4
350
280
0.68
JK57HS64-2804
64
2.8
0.8
2.3
1
4
400
300
0.75
JK57HS76-2804
76
2.8
1.1
3.6
1.89
4
600
440
1.1
JK57HS76-3006
76
3
1
1.6
1.35
6
600
440
1.1
JK57HS76-3008
76
3
1
1.8
1.5
8
600
440
1.1
JK57HS82-3004
82
3
1.2
4
2.1
4
1000
600
1.2
JK57HS82-4008
82
4
0.8
1.8
2
8
1000
600
1.2
JK57HS82-4204
82
4.2
0.7
2.5
2.2
4
1000
600
1.2
JK57HS100-4204
100
4.2
0.75
3
3
4
1100
700
1.3
JK57HS112-3004
112
3
1.6
7.5
3
4
1200
800
1.4
JK57HS112-4204
112
4.2
0.9
3.8
3.1
4
1200
800
1.4
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Company Profil
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.

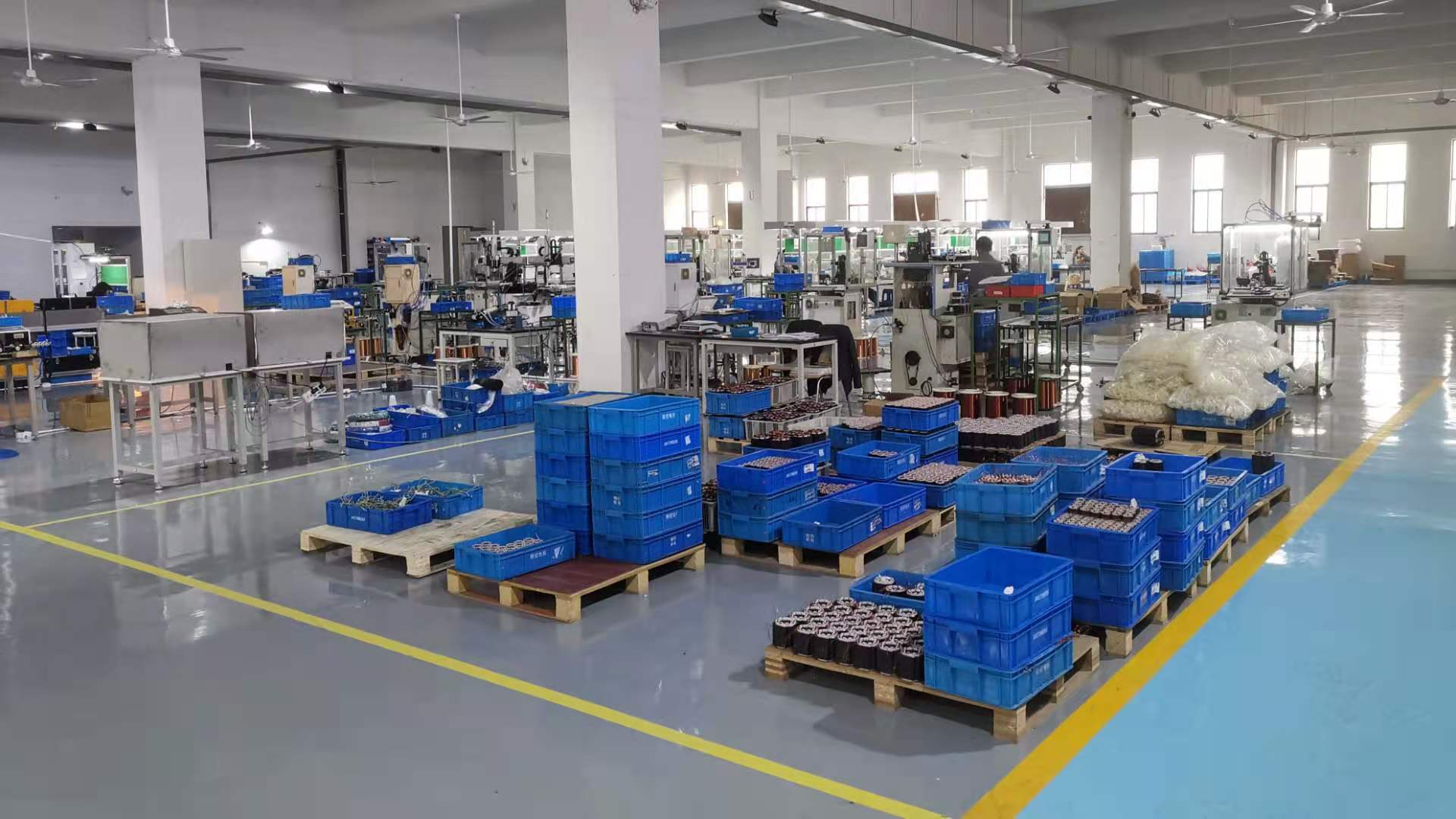

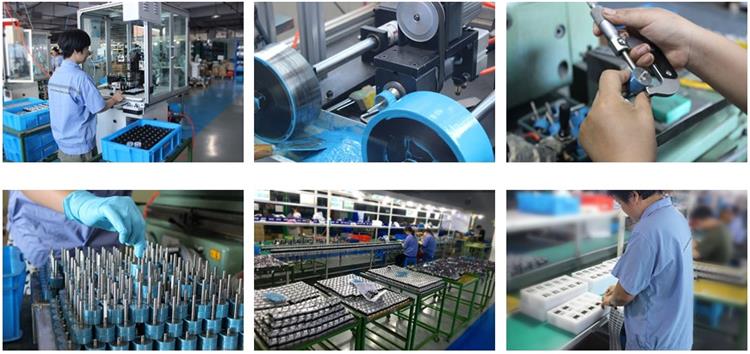

Production Process
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill

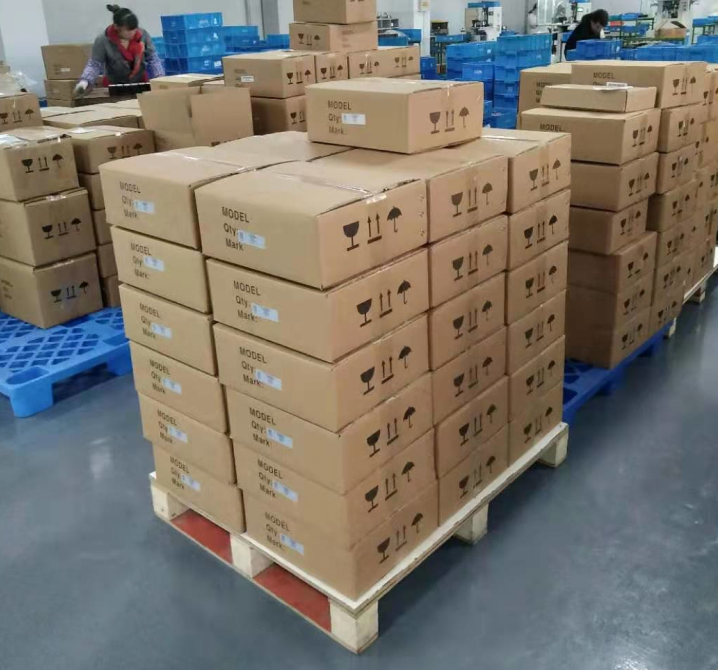

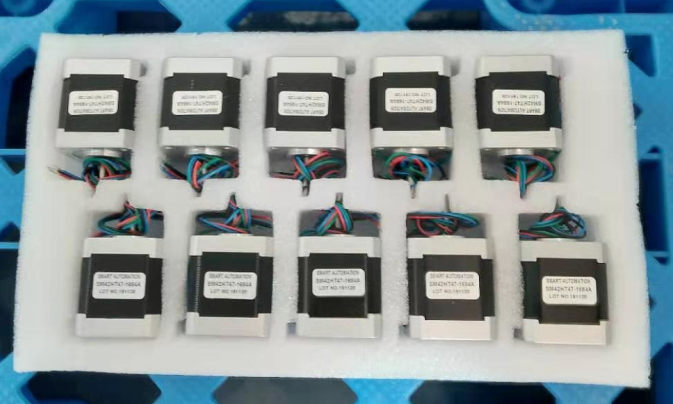

Packing
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
Certifications
Nema 23 269oz.in DC Stepper Motor Kit 57mm Stepper Motor Stepping Motor for DIY CNC Mill
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Domestic Market(30.00%),Eastern Europe(16.00%),North America(14.00%),South Asia(12.00%),Southern Europe(8.00%),Western Europe(6.00%),South America(4.00%),Northern Europe(4.00%),Southeast Asia(2.00%),Eastern Asia(2.00%),Africa(00.00%),Mid East(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Brushless DC Motor,Linear Stepper Motor,Stepper Motor

4. why should you buy from us not from other suppliers?
Good Quality , high performance ,quickly delivery time . strong design team

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
Company Profile

CHANGZHOU JKONGMOTOR CO.,LTD

Company Profile:

CHANGZHOU JKONGMOTOR CO.,LTD (Changzhou Jingkong Motor&Electric Appliance Co.,Ltd)is an ISO9001 Professional manufacturer. Was established in 2011 year. We are a professional manufacturer in Changzhou city, China. Production Capacity exceeds more than 1 million motors per year. Our Company offers three major series of products: Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor. We are always continues develop new type models.


We are also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motors, Spindle motor and Motor drivers. We export our motors to more than 30 countries Such as United States, Germany, Russia, Turkey, Brazil and so on.


Jkongmotor sold to major manufacturing Companies for Industry of automation, medical and health care equipment, 3d printer machines, packing devices, Information Technology, household appliance products.


We have an Engineering team with many years of experience in application Engineering, design Engineering with the latest advances equipment. Our Engineering Staff provides the finest quality product with service after the product is delivered to our Customers.



Mission Of the Enterprise:
Let Customer Profit
Let Staff Prosperity,
Let Enterprise Development



Corporate Culture:
Customer First   Hardwork   Positive Energy
Responsibility   Executive Force   Integrity    Gratefulness



Company Profile:

Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.

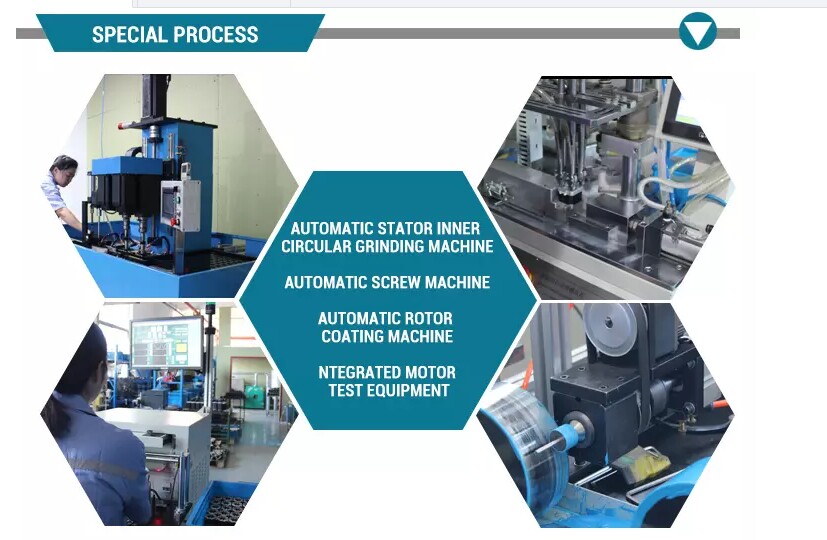

Equipments Show:

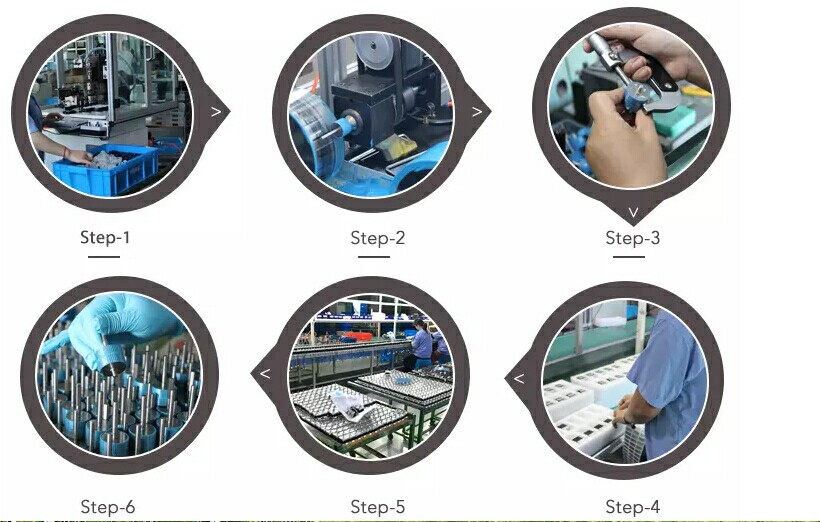

Production Flow:
